Foldable Double-Layer Bike Rack
♣High-Quality Aluminum Alloy
♣Reliable After-Sales Services
♣100% Quality Assurance
Applications:
• Railway, Subway, Bus Stops, etc
• Schools, Colleges and Universities
• Workplaces
• Retail Shopping
Product Details

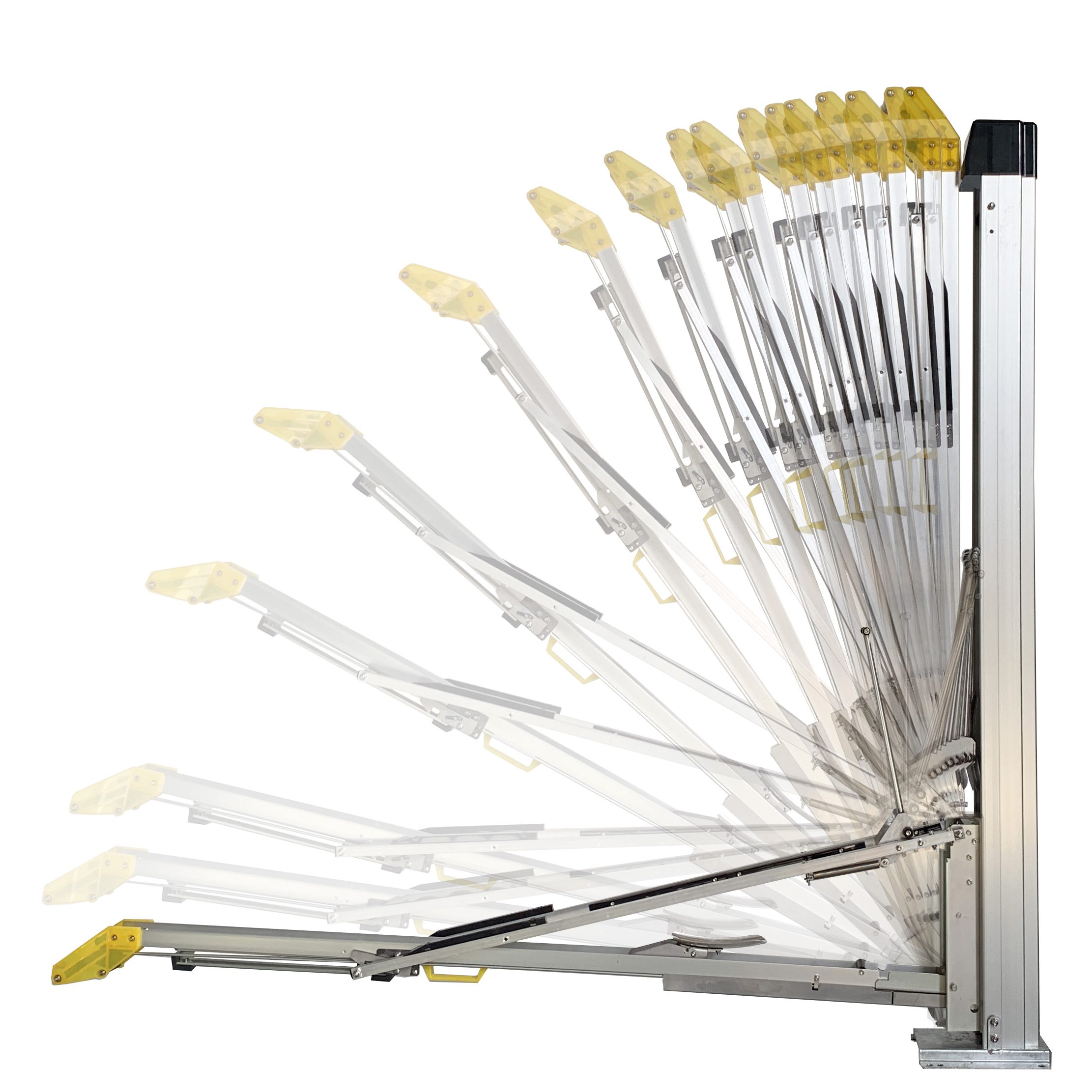

2. The lift arm is foldable when there is no bike, it will be easier to use the lower racks.
3. The upper racks can be arranged to make front wheels of bikes first loaded into the racks or front and rear wheels of bikes into the racks alternatively as per the quantity of bikes.
4. Aluminum finish not only looks sleek, but lasts longer than those “other” steel racks. Corrosion resistant aluminum material provides exceptional durabiity for heavy use.
.

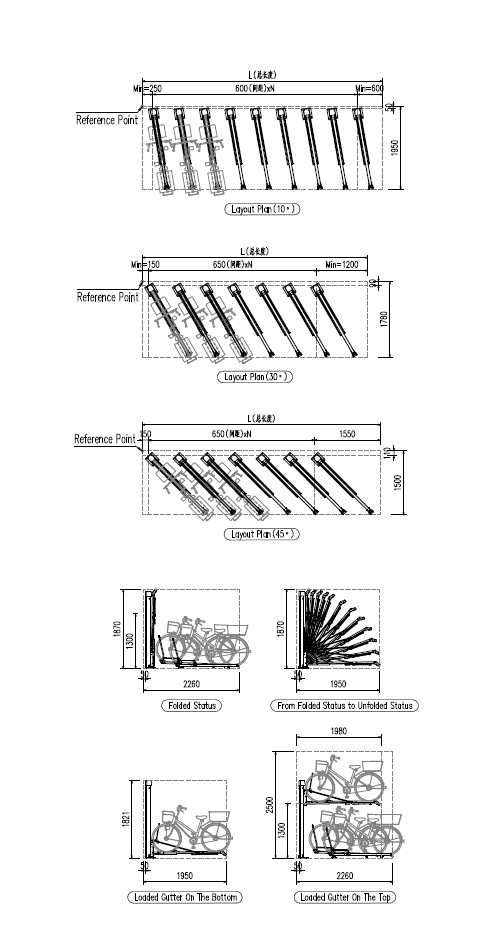

| Model | AFS | |
| Layout | Front-load | Front&rear-load |
| Min. spacing between adjacent racks (mm) | 600（650） | 450（650） |
| Standard outer diameter of bike wheel (in) | 22 to 28 | |
| Width of handle (mm) | Up to 600 | |
| Height of bike (mm) | Up to 1,150 | |
| Length of bike (mm) | Up to 1,900 | |
| Width of tyre (mm) | 32 to 48(net width of slot:55mm) | |
| Weight of bike (kg) | 15 to 20 | |
| Advantages | 1.Supported by single pillar. 2.The angle of bike rack can be freely adjusted as per the site size. |
|
Installation Process
1.Empty basement
2.Hole Drilling
3.Rack Setting
4.Rack Fixing
5.Screw Tightening
6.Second Drilling
7.Rack Alignment
8.Third Drilling
9.Bottom Rack Completion
10.Upper Rack Fixing
11.Upper Rack Tightening
12.Completion
