Vertical Pressing Bike Rack

♣High-Quality Steel

♣Reliable After-Sales Services
♣100% Quality Assurance

Applications:
• Railway, Subway, Bus Stops, etc
• Schools, Colleges and Universities
• Workplaces
• Retail Shopping

Product Details

Description

The Vertical press bike rack is the rack of the bike parking , which is pioneering and user-friendly cycle parking product with excellent space saving bike storage, superb usability and high value.

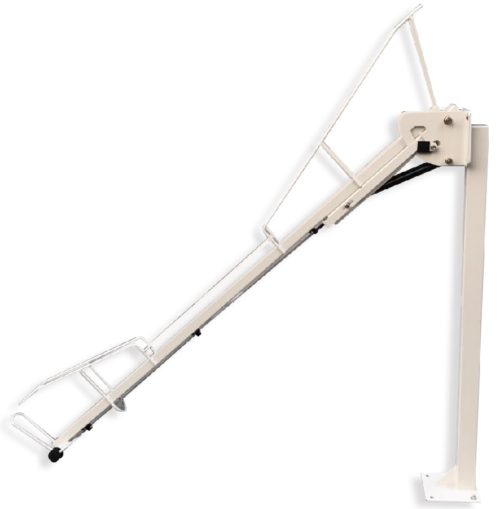

The sturdy upper rack ensures a smooth and controlled 45° tilt motion for easy bike storage and retrieval, enhancing user experience.

1.The bike rack can rotate at 45° around the joint through the dual hydraulic rod on the pillar top to lift or lower the bike.

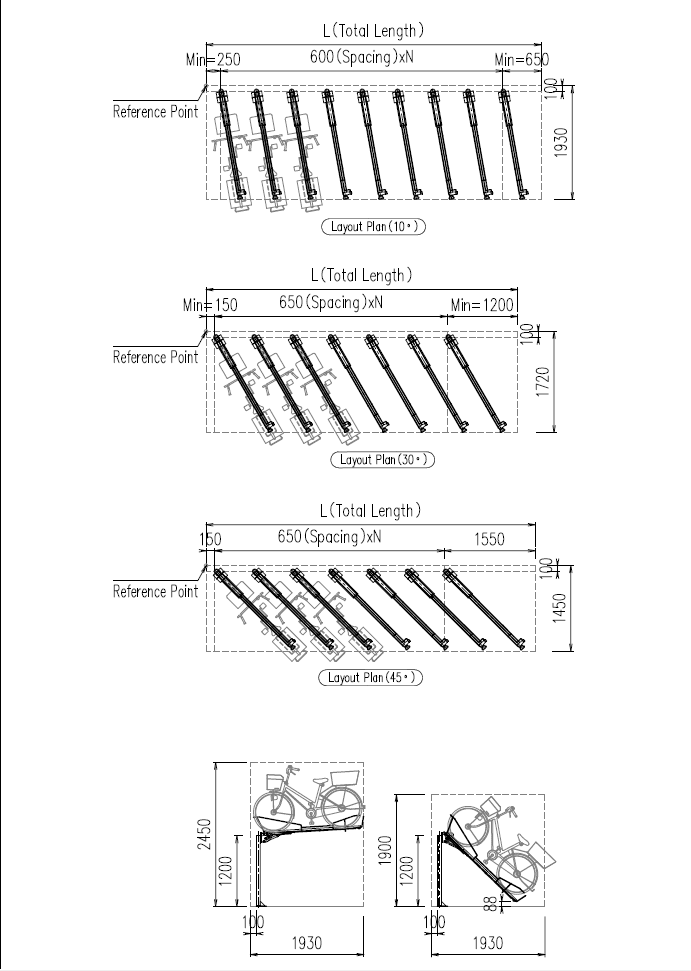

2. In order to ensure the width of bike path, the bike racks can be adjusted at 10°, 30°or 45°according to the site conditions.

Our “Two Tier Bike Rack” has the unique aspects of efficient space and cost saving, so the market demands for such product have been rapidly increased; especially in the areas of high population densities such as schools, offices, car parks, stations and shopping centres.

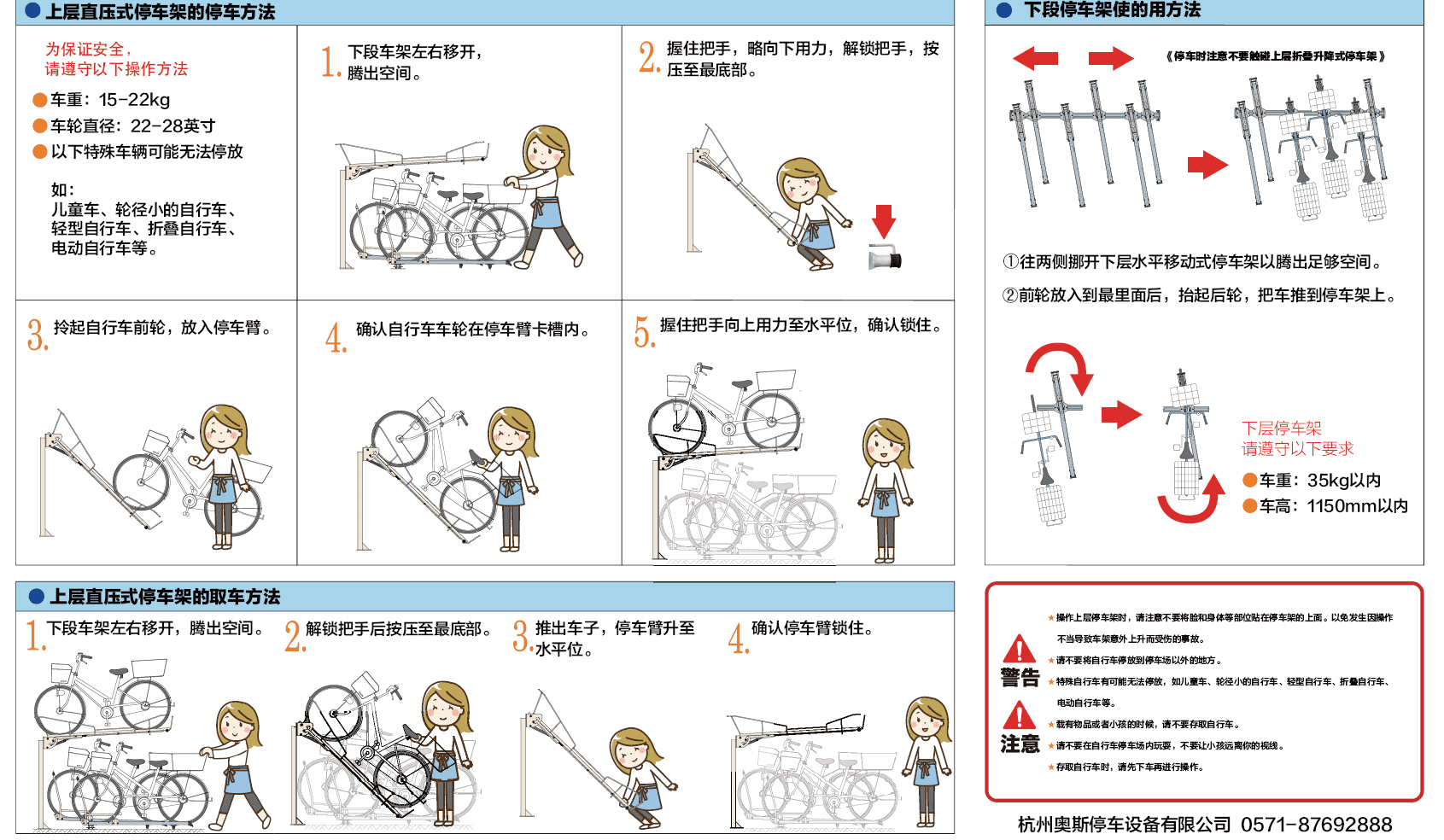

For the details of usage method, please see the User’s Manual.

Features

•In order to ensure the width of bike path, adjust the bike racks at 10°,30°or 45°according to the site conditions.
•The top rack can be arranged to make front wheels of bikes first loaded into the racks or front and rear wheels of bikes into the racks alternatively as per the quantity of bikes.

Technical Parameters

Model	ZY
Layout	Front-load	Front&rear-load
Min. spacing between adjacent racks (mm)	600（650）	450（650）
Standard outer diameter of bike wheel (in)	22 to 28
Width of handle (mm)	Up to 600
Height of bike (mm)	Up to 1,150
Length of bike (mm)	Up to 1,900
Width of tyre (mm)	32 to 48(net width of slot:55mm)
Weight of bike (kg)	15 to 20
Advantages	1.Supported by single pillar. 2.The angle of bike rack can be freely adjusted as per the site size.
