Traditional Two Tier Bike Rack
♣High-Quality Steel
♣Reliable After-Sales Services
♣100% Quality Assurance
Applications:
• Railway, Subway, Bus Stops, etc
• Schools, Colleges and Universities
• Workplaces
• Retail Shopping
Product Details

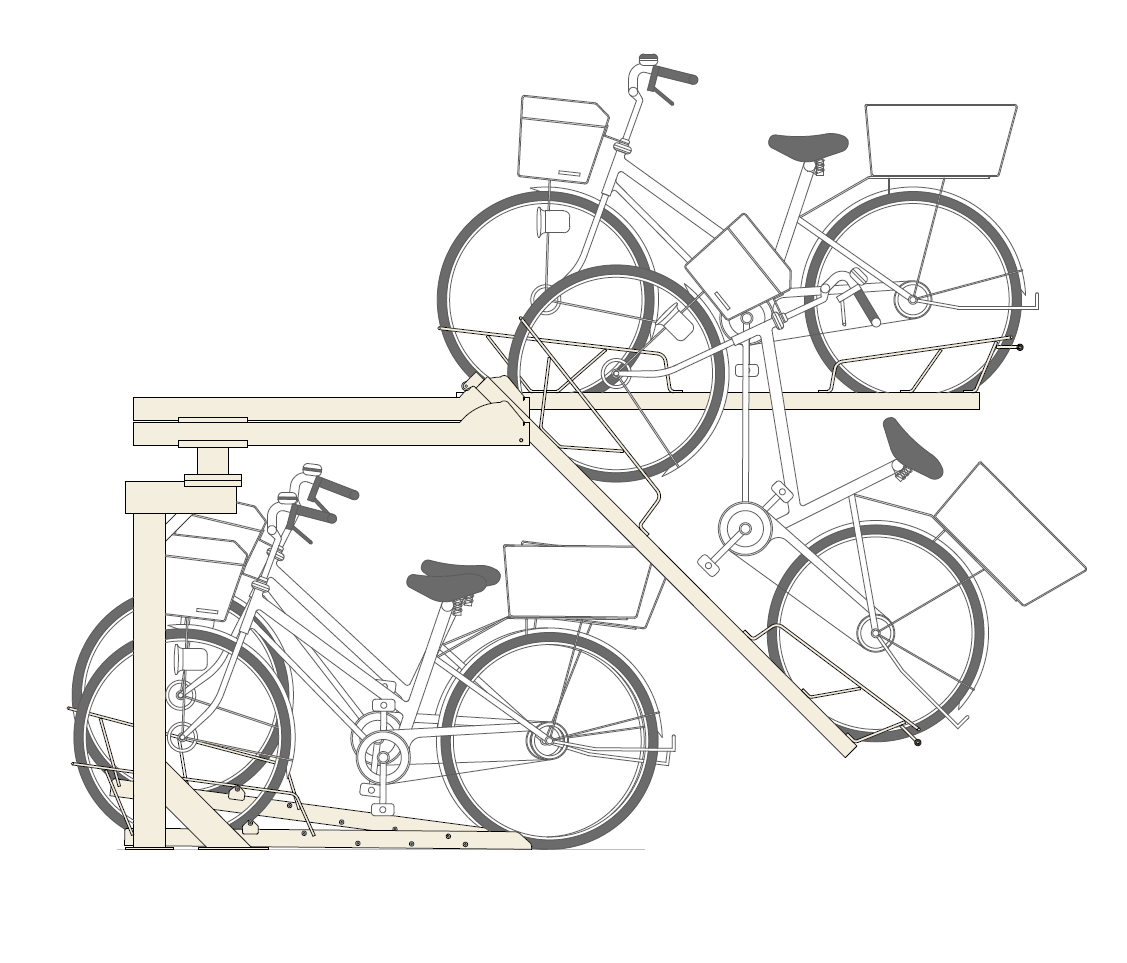

The Traditional two tier bike rack is the rack of the bike parking , which is pioneering and user-friendly cycle parking product with excellent space saving bike storage, superb usability and high value.
When loading or unloading a bike, the only thing you have to do is to press the button at the end handle to the ground, . After loading or unloading the bike, just raise the end handle from the bottom ,you can put the rack will rise up .
When loading or unloading a bike, the only thing you have to do is to press the button at the end handle to the ground, . After loading or unloading the bike, just raise the end handle from the bottom ,you can put the rack will rise up .
1. It is designed to simplify loading of the bikes.
2. The top tray can be easily lowered and lifted.
3. The hydraulic lift assist assures that anyone can lift the bike and tray into the place.
| Model | ||

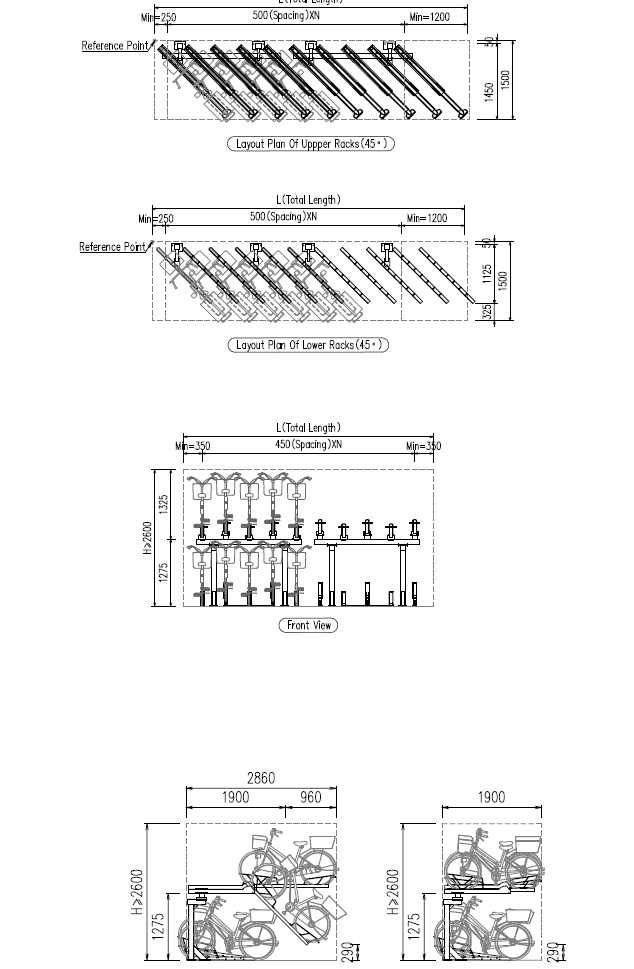

| Layout | ||
| Min. spacing between adjacent racks (mm) | ||
| Standard outer diameter of bike wheel (in) | 22 to 28 | |
| Width of handle (mm) | Up to 600 | |
| Height of bike (mm) | Up to 1,150 | |
| Length of bike (mm) | Up to 1,900 | |
| Width of tyre (mm) | 32 to 48(net width of slot:55mm) | |
| Weight of bike (kg) | 15 to 20 | |
| Advantages | 1.Supported by single pillar. 2.The angle of bike rack can be freely adjusted as per the site size. |
|
Installation Process
1.Empty basement
2.Hole Drilling
3.Rack Setting
4.Rack Fixing
5.Screw Tightening
6.Second Drilling
7.Rack Alignment
8.Third Drilling
9.Bottom Rack Completion
10.Upper Rack Fixing
11.Upper Rack Tightening
12.Completion
•Easy locking function can increase the bike parking security.
